Product Details:
|
| Keywords: | DIP/through- Hole Spring Pin,DIP Pogo Pin | Material: | Brass;gold Plating |
|---|---|---|---|
| Connector Type: | High Current Connectors | Type: | Pogo Pin, M1803 |
| Gender: | Female | Contact Resistance: | 70 Milliohm Max |
| Plunger Plating: | Gold Plating Over Nickel Plating | ||
| High Light: | Female Probe POGO Pin,Probe POGO Pin gold plating,PCB through hole pogo pin header |
||

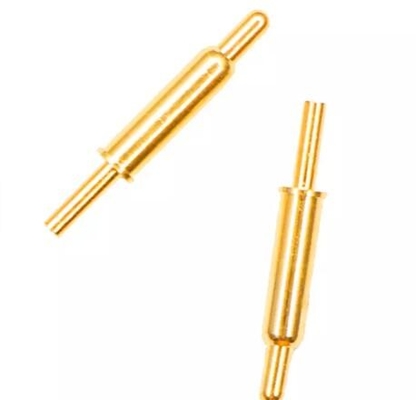

DIP Through-Hole Spring Pin DIP Pogo Pin
(a) stable contact resistance
POGO PIN connectors are mostly used in intelligent devices and other intelligent terminal devices, so stable current signal and
resistance is required to stabilize the performance of the device.
(b) Working frequency and working hours
POGO PIN connector needs to be repeatedly plugged and unplugged at work, which requires very strict frequency requirements for its work. The service life of POGO PIN can reach about 50000 times.
(c) Small size, high density and lightweight
|
Product Name |
Custom DIP Spring Loaded Contact Pogo Pin For PCB Mount Pin Connector
|
|
Material
|
stainless steel, Brass, Aluminum, Etc.
|
|
Finish
|
Zinc / Nickel / Copper Plating, Powder Coating, Etc.
|
|
Standard
|
Nonstandard or OEM
|
|
MOQ
|
100pcs
|
|
Package
|
PE bag inside, carton outside or per our customers needs
|
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Waterproof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
