Product Details:
|
| Product Name: | Spring Loaded Pogo Pin | Specifications: | M1.6 M3 M4 M5 M6 |
|---|---|---|---|
| Plating Barrel: | 3 Micro-inch Gold 50 To 80 Micro-inch Nickel | Voltage: | 5V~12V |
| Gold Plating: | 3U''~30U" | Gender: | Male And Female |
| Cycle Life: | 10000~1000000 Times | Plunger Plating: | Gold Plating Over Nickel Plating |
| High Light: | 2.0 fine pitch pogo pins,2.50 fine pitch pogo pins,pogo pin header Nickel plated |
||

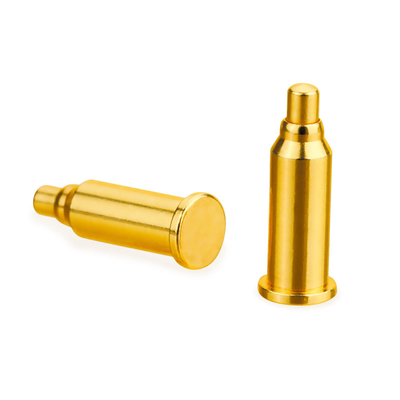

Custom 2.0 2.50 Pitch Spring Loaded Type Pogo Pin
POGOPIN: A spring test needle formed after the riveting prepressure of the needle shaft, spring and needle tube, with a precise spring structure inside. The surface coating of POGOPIN is generally gilded, which can better improve its corrosion prevention function, mechanical performance, electrical performance, etc.The tip has sharp needle, grasp needle, round head, knife needle, etc. POGOPIN is generally used for precision connections in mobile phones, communications, automobiles, medical care, aerospace and other electronics, which can improve the corrosion resistance, stability, and durability of these connectors. Since the POGOPIN is a very fine probe, the application in the precision connector can reduce the weight of the connector and the volume of the appearance, which can make the connector more fine and beautiful.
| Material | Brass(C3604) |
| Color | Gold |
| Size | Depends on customers' requirements |
| Type | SMT, per customers' demand |
| Plated | Gold palted from 2 to 40U", can customized |
| Cycle life | 30,000 ~100,000 times |
| Contact resistance | 50m Ohm Max. |
| Salt fog | 48H |
| Rated current&voltage | 2A~40A / 12V, can be customized |
| Applications | PCB,power ,charging equipments |
| Certificate | ISO9001/ROHS/REACH |
| Packing | 1000pcs/PE bag(or according to customer requirements) |
| Payment Term | T/T,30% Deposit,70% Balance |
| Payment method | T/T,PayPal, |
| Freight | Air,Sea,Express |
| Sample Lead Time | Inventory sample 1-3 days /customizd sample 3-7days |
| Production Lead Time | 5-15 working days, or depend on order quantity |
| Made For | America,Europe,Asia,South African |
| Trade Term | EXW,FOB,CIF |
| Service | High quality with reasonable price. |
| OEM serivce, any special size, color, designs are acceptable. | |
| Original sample can be re-made. |
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Water proof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
