Product Details:
|
| Product Name: | Pogo Pin Spring Contact Smd | Connector Type: | AC/DC Power Connector |
|---|---|---|---|
| Treatment: | Gold-plated Over Nickel | Plating: | Golden Palting |
| Service: | Customized OEM | Surface Treatment: | Gold Plated/nickel Plated Chrome Plated Anodized And So On |
| Tolerance: | High Precision | Plunger Plating: | Gold Plating Over Nickel Plating |
| High Light: | Spring Loaded pcb mount pogo pins,pcb mount pogo pins Male Female,usb pogo pin 2.7mm |
||

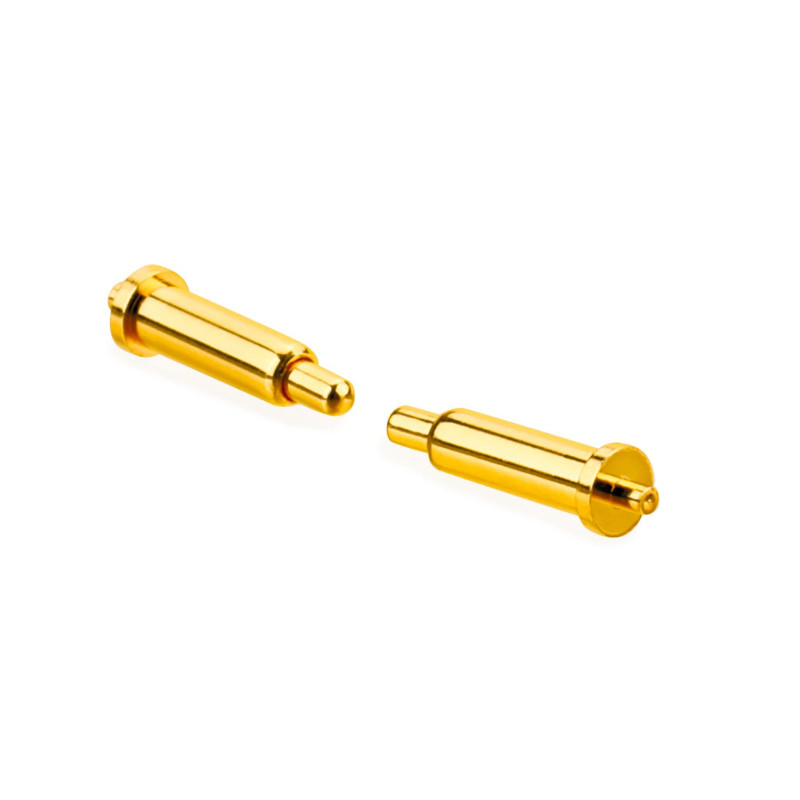

OEM Male Female 2.7mm Length Pogo Pin With Spring Loaded For USB
Pogo pin strong points:
1. World's first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
2. World's second manufacturer developed 1.27 pitch pogo pin connector (US: mill-max)
3. Asia's first manufacturer achieved compression mechanical 1 million life times (world's second manufacturer)
4. Asia's first professional medical, industrial, special industries such as automobile industry suppliers
5. China's first pogo pin product with magnet combined connector manufacturer and own most solutions (200 items)
Standard test of pogo pin:
1. Durability and spring force
2. Contact resistance
3. Temperature rising
4. Insulation-resistance
5. Dielectric withstanding voltage
| Material | Brass(C3604) |
| Color | Gold |
| Size | Depends on customers' requirements |
| Type | SMT, per customers' demand |
| Plated | Gold plated from 2 to 40U", can customize |
| Cycle life | 30,000 ~100,000 times |
| Contact resistance | 50m Ohm Max. |
| Salt fog | 48H |
| Rated current&voltage | 2A~40A / 12V can be customized |
| Applications | PCB,power ,charging equipments |
| Certificate | ISO9001/ROHS/REACH |
| Packing | 1000pcs/PE bag(or according to customer requirements) |
| Payment Term | T/T,30% Deposit,70% Balance |
| Payment method | T/T,PayPal, |
| Freight | Air, Sea, Express |
| Sample Lead Time | Inventory sample 1-3 days / customizd sample 3-7days |
| Production Lead Time | 5-15 working days, or depend on order quantity |
| Made For | America, Europe, Asia, South African |
| Trade Term | EXW,FOB,CIF |
| Service | High quality with reasonable price. |
| OEM serivce, any special size, color, designs are acceptable. | |
| Original sample can be re-made. |
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Waterproof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
