Product Details:
|
| Product Name: | Spring Loaded Pogo Pin For Bluetooth Headset | Material: | Nickel-plated |
|---|---|---|---|
| Function: | Power Charging | Surface Treatment: | Bright Polish |
| Gold Plating: | 3U''~30U" | Gender: | Male And Female |
| Cycle Life: | 10000~1000000 Times | Plunger Plating: | Gold Plating Over Nickel Plating |
| High Light: | Battery spring loaded pins electronics,spring loaded pins electronics SMD Needle,PCB pogo pin insertion tool |
||

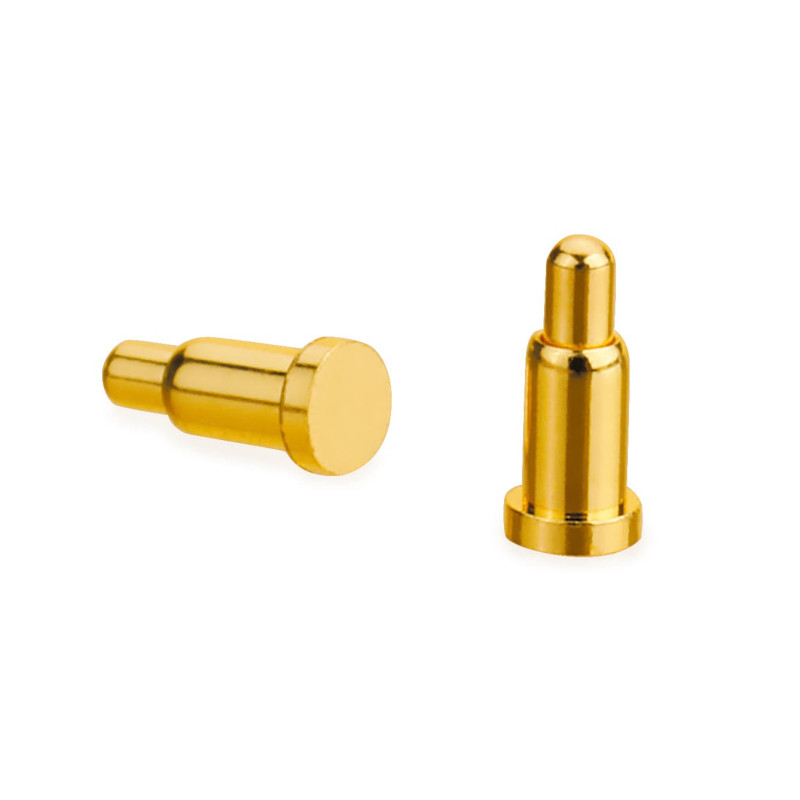

Battery Spring Loaded Contact SMD Needle PCB Pogo Pin
TX Spring-Loaded (Pogo Pin) Connectors provide a reliable electrical connection in the most rigorous environments. These interconnect components are typically used as the base unit (battery/charger) interface for portable equipment such as mobile phones/radios, barcode readers, medical, and test instruments. TX Spring-Loaded (Pogo Pin) Connectors can also be used as a rugged surface-to-surface connector between circuit boards.
|
A. Electrical
|
||||
|
1) Contact resistance
|
30mOhm Max
|
|||
|
2) Voltage rating
|
12V DC Max
|
|||
|
3) Current rating
|
2.0A
|
|||
|
B. Material/Finish
|
||||
|
1) Body&Plunger
|
Green copper brass,Gold plating over Nickel plating
|
|||
|
2) Spring
|
SUS 304,No plating
|
|||
|
3) Housing&Cap
|
PA46+30% glass fiber; Black(UL94V-0)
|
|||
|
C. Mechanical
|
||||
|
1) Mechanical life:
|
10,000 cycle min.
|
|||
|
5) Plunger swing angle
|
±5° Max.
|
|||
|
D. Environmental
|
||||
|
1) Storage and operating temperature range
|
-40°C~+85°C
|
|||
|
2) Humidity range
|
10% RH to 95% RH
|
|||
|
3) Salt spray
|
48H
|
|||
|
4) High temperature resistance
|
260℃ ,3 minutes
|
|||
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high-class precision, 0.01mm precision
3. High recycling, Large Current, Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM, Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Waterproof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
