Product Details:
|
| Features: | Fire/flame Retardant, Stable Conductivity | Keywords: | Pogo Pin Spring Contact Smd |
|---|---|---|---|
| Gender: | Female | Application: | PCB |
| Rated Voltage: | 12V | Gold Plating: | 3U''~30U" |
| Plunger Plating: | Gold Plating Over Nickel Plating | ||
| High Light: | Female 10A pogo test probes,pogo test probes high precision,Spring Loaded pogo pin test probe |
||

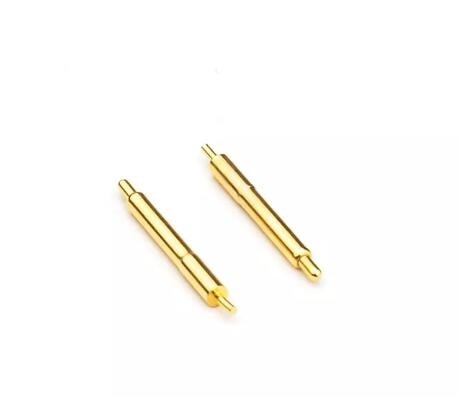

10A High Current DIP Type Spring Loaded Pogo Pin
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Waterproof
1. PLATING
1.1) Plunger: Brass C3604,3~50 micro inch Au over 50~120 micro inch Ni;
1.2) Barrel: Brass C3604,3~50 micro inch Au over 50~120 micro inch Ni;
1.3) Spring: SUS304, 1~3 micro inch Au;
2. Rated voltage (Per Contact): 12 V;
3. Rated Current (Per Contact): 1.0A-40.0 A;
4. Insulation Resistance: 100MΩ Minimum;
5. Dielectric Withstanding Voltage: 100VRMS AT 60HZ;
6. Contact Resistance: 50 mΩ maximum before test and 60mΩ maximum after test at Pogo pin working stroke;
7. Recommended Working Stroke & Force:
7.1) Spring Force:>=30gf ;
8. Mechanical life:
8.1) Mechanical life: 30,000~100,000 Cycles;
9. Working Temperature Range:-30~85℃;
10. Salt Spray: 48 hours;
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
