Product Details:
|
| Keywords: | DIP Spring Loaded Pogo Pin | Spring Material: | SUS Surface Treatment |
|---|---|---|---|
| Max. Dia:: | 3.89mm | Gender: | Male |
| Rated Voltage: | 12V | Life Test: | 10,000 Cycles |
| Feature: | Corrosion Resistance, Stability, Durability | ||
| High Light: | 3.89mm Probe POGO Pin,Brass Probe POGO Pin,Spring loaded miniature pogo pins |
||

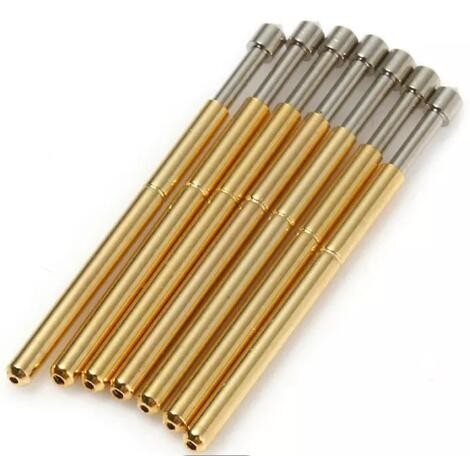

Custom Brass POGO Pin Though Hole Spring Pins
| Specification: | Material: Brass C3604, spring: stainless steel The model and specification of the product, the thickness of the gold plating, can be customized according to the customer's requirements. |
| Certification: | ROHS,REACH |
| Sample: | Free |
| MOQ: | 2000pieces |
| Delivery: | Within stocks products will be send out in 3working days,customized products are sent out around 7working days |
| Terms of trade: | FOB |
| Payment Terms: | T/T,Paypal |
| Package: | products coming in paper box,Tape & Reel (TR)Carton with packing list and shipping mark |
| Application: | Widely used in communication equipment, computer, controller, anti - theft alarm, intelligent equipment, electrical instruments, automobiles, etc. |
| Service: | OEM & ODM & respond promptly. |
Applications:
1. smart wearable device,GPS(smart watch,smart bracelet, Bluetooth earphone) data cable,charging cable,magnetic cable
2. medical device, wireless device, handset, telecom device, industrial and auto equipment
3. aerospace industry, military telecom
4. vehicle navigation
5. 3C, measuring equipment
6. smart toys,VR,digital cameras,printing machine, PDA, drone)
|
Product Name |
Custom DIP Spring Loaded Contact Pogo Pin For PCB Mount Pin Connector
|
|
Material
|
stainless steel, Brass, Aluminum, Etc.
|
|
Finish
|
Zinc / Nickel / Copper Plating, Powder Coating, Etc.
|
|
Standard
|
Nonstandard or OEM
|
|
MOQ
|
100pcs
|
|
Package
|
PE bag inside, carton outside or per our customers needs
|
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Waterproof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
