Product Details:
|
| Keywords: | Pogo Pin Spring Contact Smd | Material: | Brass;gold Plating |
|---|---|---|---|
| Gender: | Female / Male, Male Female Power Connector | Rated Voltage: | DC12V |
| Gold Plating: | 3U''~30U" | Contact Resistance: | 70 Milliohm Max |
| Plunger Plating: | Gold Plating Over Nickel Plating | ||
| High Light: | DC12V miniature pogo pins,30U" miniature pogo pins,short pogo pins Dip Type |
||

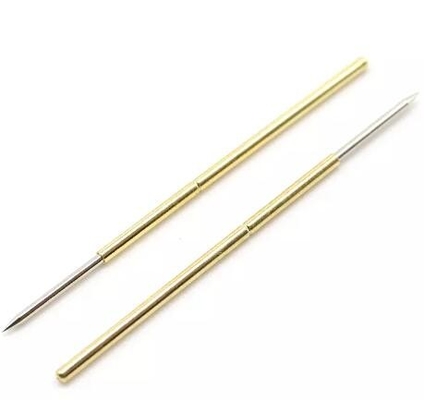

Pogo Pin Dip Type Custom Length Working Height Working Stroke Spring Pogo Pin
| CNC Turning | φ0.5 - φ300 * 750 mm | +/-0.005 mm |
| CNC Milling | 510 * 1020 * 500 mm(max) | +/-0.01 mm |
| CNC Stamping | 1000 * 1000 mm(max) | +/-0.05 mm |
| Drawing Format | IGS,STP,X_T ,DXF,DWG , Pro/E, PDF | |
| Test Equipment | measurement instrument, Projector, CMM, Altimeter,Micrometer, Thread Gages, Calipers, Pin Gauge etc. |
Material Available :
| Stainless Steel | SS201,SS301, SS303, SS304, SS316, SS416 etc. |
| Steel | mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45# etc. |
| Brass | HPb63, HPb62, HPb61, HPb59, H59, H68, H80, H90 etc. |
| Copper | C11000,C12000,C12000 C36000 etc. |
| Aluminum | AL6061, Al6063, AL6082, AL7075, AL5052, A380 etc. |
| Iron | A36, 45#, 1213, 12L14, 1215 etc. |
| Plastic | ABS, PC, PE, POM, Delrin, Nylon, Teflon, PP,PEI, Peek etc. |
Surface finish:
| Aluminum parts | Stainless Steel parts | Steel | Plastic |
| Clear Anodized | Polishing | Zinc plating | Painting |
| Color Anodized | Passivating | Oxide black | Chrome plating |
| Sandblast Anodized | Sandblasting |
Nickel plating | polishing |
| Chemical Film | Laser engraving | Chrome plating | Sandblast |
| Brushing | Carburized | Laser engraving | |
| Polishing | Heat treatment | ||
| Chroming | Powder Coated |
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
