Product Details:
|
| Keywords: | Pogo Pin Spring Contact Smd | Material: | Brass;gold Plating |
|---|---|---|---|
| Connector Type: | Adaptor | Type: | Pogo Pin, M1803 |
| Gender: | Female | Contact Resistance: | 70 Milliohm Max |
| Plunger Plating: | Gold Plating Over Nickel Plating | ||
| High Light: | 12mm spring pogo pins,4 Pin spring pogo pins,pogo pin 1.27 mm Pcb |
||

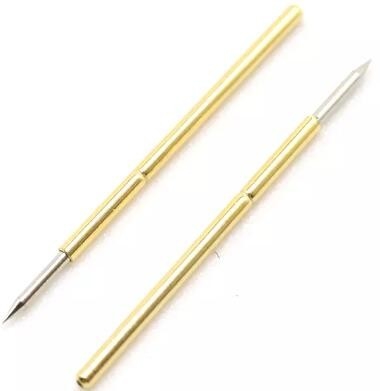

OEM Pogo Pin 1.27Mm Pitch Dip Pogo Pin Connector 4 Pin Pogo Pcb
Pogo pin, A single pin consists of a plunger, spring and barrel by riveting and pressing with precision equipment. CFE has developed numerous of new structures for customers during the past decade and continues to add more parts such as a precision insulating bead, precision positioning column, precision positioning tail plug, precision inner bushing, precision outer sheath, precision steel ball, precision spring, peek sleeve, sealing ring, etc. A number of invention and utility model patents have been obtained
|
Product name
|
Spring-loaded contacts / Pogo pin
|
|
Material for plugger and body
|
Brass Alloy C36000
|
|
Spring material
|
Stainless Steel Wire
|
|
Surface Plating
|
Gold plated 1mirco inch or 3mirco inch over Nickle
|
|
Produce by
|
CNC Auto Lathe Machine
|
|
Sample leadtime
|
5~8 days
|
|
Process Length range
|
3.0~12 mm
|
|
Pin diameter range
|
-0.5~5.5 mm
|
|
Package
|
5k~10k per bag or tape package with cover
|
|
ODM & OEM
|
Can provide services
|
|
Suitable for Scenes
|
Mobile communication, mobile PC, GPRS, electronic education, handheld computers, digital cameras, car electronics, medical
equipment and 3 c electronics and other fields |
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current , Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM, Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Waterproof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
