Product Details:
|
| Product Name: | Spring Loaded Pogo Pin For Bluetooth Headset | Specifications: | M1.6 M3 M4 M5 M6 |
|---|---|---|---|
| Insulation Resistance: | 1000MΩ Min | Current: | 1.0AMP |
| Gold Plating: | 3U''~30U" | Gender: | Male And Female |
| Cycle Life: | 10000~1000000 Times | Plunger Plating: | Gold Plating Over Nickel Plating |
| High Light: | 1 AMP spring loaded probes 10000 times,Magnetic spring loaded probes 10000 times,TX pogo electronics 10000 times |
||

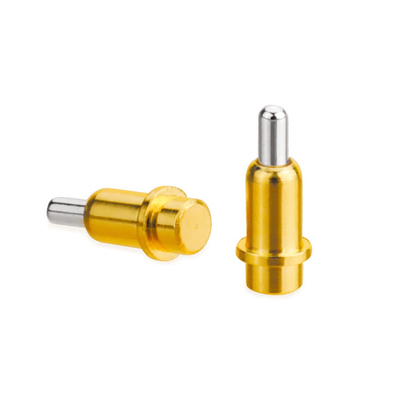

Electronic Products Pogo Pin Magnetic Charger Connector Spring Load Pin
Pogo pin, A single pin consists of a plunger, spring, and barrel by riveting and pressing with precision equipment. CFE has developed numerous of new structures for customers during the past decade and continues to add more parts such as a precision insulating bead, precision positioning column, precision positioning tail plug, precision inner bushing, precision outer sheath, precision steel ball, precision spring, peek sleeve, sealing ring, etc. A number of invention and utility model patents have been obtained
|
Main Material
|
Brass, Copper, Carbon steel, Stainless steel, Steel alloy, Aluminum alloy .etc
|
|||
|
Surface Treatment
|
Zinc plating,Anodized Black, Nickel plating, chromate plating, anodize
as per customer's requirement |
|||
|
Precise Tolerances we can do
|
Well Control 0.01mm as per drawing's tolerance
|
|||
|
Production Equipment
|
1. CNC Milling Machine/CNC Automatic lathe/Numerical control lathe
2. Precision Cutting Machine 3. Screw Machine/Thread Roller/Header 4. Puching Machine
|
|||
|
QC
|
1. Incoming material will be checked carefully before production.
2. Strict processing quality control 3. 100% inspection before shipment. |
|||
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high-class precision, 0.01mm precision
3. High recycling, Large Current, Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM, Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Waterproof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
| Stainless Steel | SS201, SS301, SS303, SS304, (SS304 FOOD GRADE), SS316, SS316L, SS416 etc. |
| Steel | Mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45# etc |
| Brass | HPb63, HPb62, HPb61, HPb59, H59, H68, H80, H90 etc |
| Copper | C11000,C12000,C12000 C36000 etc |
| Aluminum | AL6061, Al6063, AL6082, AL7075, AL5052, A380 etc |
| Iron | A36, 45#, 1213, 12L14, 1215 etc. |
| Plastic | ABS, PC, PE, POM, Delrin, Nylon, plastic, PP,PEI, Peek etc. |
| Aluminum parts | Stainless Steel parts | Steel | Plastic |
| Clear Anodized | Polishing | Powder Coated | Painting |
| Color Anodized | Polishing | Zinc plating | Chrome plating |
| Sandblast Anodized | Passivating | Oxide black | polishing |
| Chemical Film | Sandblasting | Nickel plating | Sandblast |
| Brushing | Laser engraving | Chrome plating | Laser engraving |
| Polishing | Carburized | ||
| Chroming | Heat treatment |
