Product Details:
|
| Product Name: | Spring Loaded Pogo Pin For Bluetooth Headset | Specifications: | M1.6 M3 M4 M5 M6 |
|---|---|---|---|
| Durability: | 10,000 Cycle Min. | Surface Treatment: | Bright Polish |
| Gold Plating: | 3U''~30U" | Gender: | Male And Female |
| Cycle Life: | 10000~1000000 Times | Plunger Plating: | Gold Plating Over Nickel Plating |
| High Light: | Electrical Spring Loaded POGO Pin,Spring Loaded POGO Pin M5 M6,Cell Phone pogo pin contact pad |
||

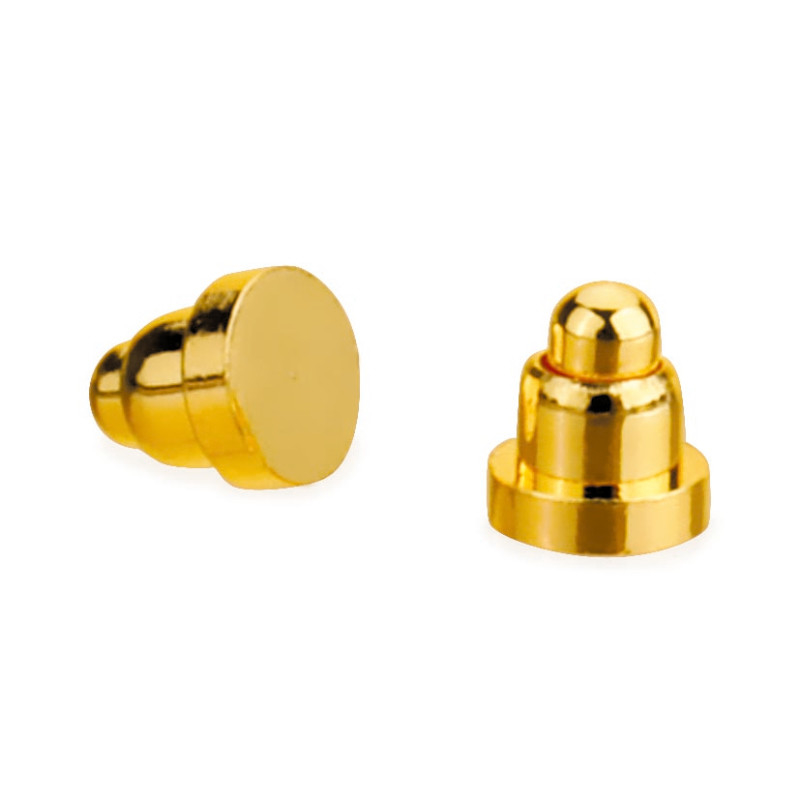

Customized Brass Spring Loaded Electrical Contact Pogo Pin For Cell Phone
Application Field
1: Aerospace Electronics,medical equipment electronics, automotive electronics,industrial electronics. 5G communication electronics, military, and police equipment electronics.
2: UAV equipment, medical products, Internet of things equipment (IoT), intelligent data center, portable equipment, intelligent robot.
3: Smart home appliances, smart hair appliances, smart handheld devices, intelligent sports equipment, intelligent physiotherapy and beauty equipment.
4: Smart wearable products (TWS Bluetooth headset, headset, smartwatch, smart bracelet, smart clothing, etc.)
5: Consumer electronics (printers, smartphones, laptops, tablets, atomizers e-cigarettes, LED lamps)
| Material | Brass(C3604) |
| Color | Gold |
| Size | Depends on customers' requirements |
| Type | SMT, per customers' demand |
| Plated | Gold palted from 2 to 40U", can customized |
| Cycle life | 30,000 ~100,000 times |
| Contact resistance | 50m Ohm Max. |
| Salt fog | 48H |
| Rated current&voltage | 2A~40A / 12V, can be customized |
| Applications | PCB,power ,charging equipments |
| Certificate | ISO9001/ROHS/REACH |
| Packing | 1000pcs/PE bag(or according to customer requirements) |
| Payment Term | T/T,30% Deposit,70% Balance |
| Payment method | T/T,PayPal, |
| Freight | Air,Sea,Express |
| Sample Lead Time | Inventory sample 1-3 days /customizd sample 3-7days |
| Production Lead Time | 5-15 working days, or depend on order quantity |
| Made For | America,Europe,Asia,South African |
| Trade Term | EXW,FOB,CIF |
| Service | High quality with reasonable price. |
| OEM serivce, any special size, color, designs are acceptable. | |
| Original sample can be re-made. |
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Water proof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to courier company
| Stainless Steel | SS201, SS301, SS303, SS304, (SS304 FOOD GRADE), SS316, SS316L, SS416 etc. |
| Steel | Mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45# etc |
| Brass | HPb63, HPb62, HPb61, HPb59, H59, H68, H80, H90 etc |
| Copper | C11000,C12000,C12000 C36000 etc |
| Aluminum | AL6061, Al6063, AL6082, AL7075, AL5052, A380 etc |
| Iron | A36, 45#, 1213, 12L14, 1215 etc. |
| Plastic | ABS, PC, PE, POM, Delrin, Nylon, plastic, PP,PEI, Peek etc. |
| Aluminum parts | Stainless Steel parts | Steel | Plastic |
| Clear Anodized | Polishing | Powder Coated | Painting |
| Color Anodized | Polishing | Zinc plating | Chrome plating |
| Sandblast Anodized | Passivating | Oxide black | polishing |
| Chemical Film | Sandblasting | Nickel plating | Sandblast |
| Brushing | Laser engraving | Chrome plating | Laser engraving |
| Polishing | Carburized | ||
| Chroming | Heat treatment |
