Product Details:
|
| Application: | Kitchen, Bathroom, Home Office, Living Room, Bedroom | Type: | Other Furniture Hardware |
|---|---|---|---|
| Color: | Grey | Surface Treatment:: | QPQ |
| Gas Type: | Nitogen Gas | Gas Style: | Gas Cylinder |
| High Light: | Door Fitting residential door damper,100000 cycles residential door damper,metal cabinet door damper SGS |
||

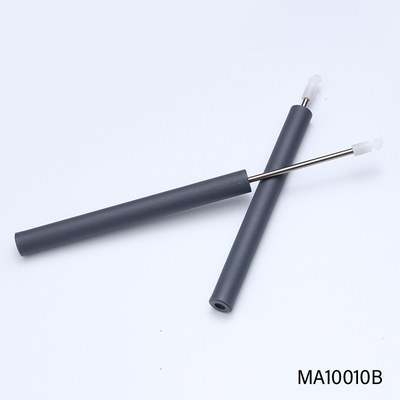

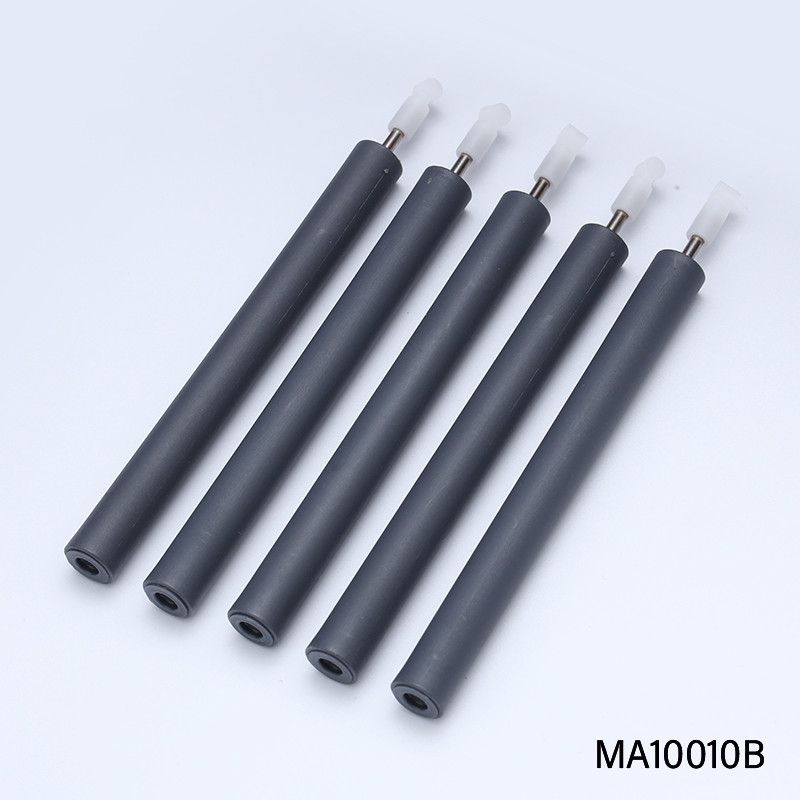

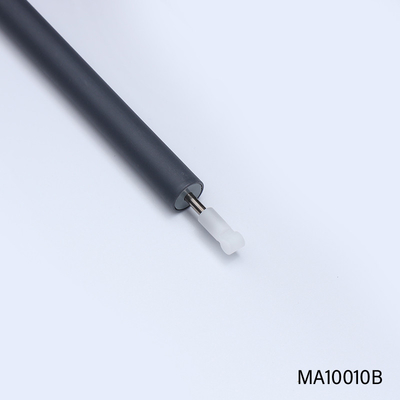

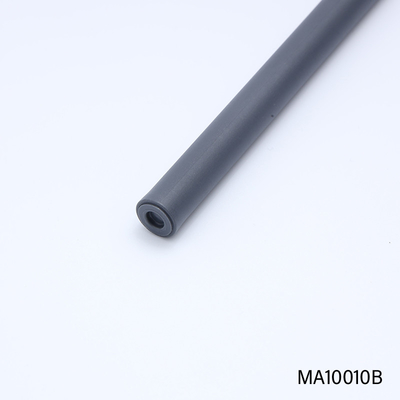

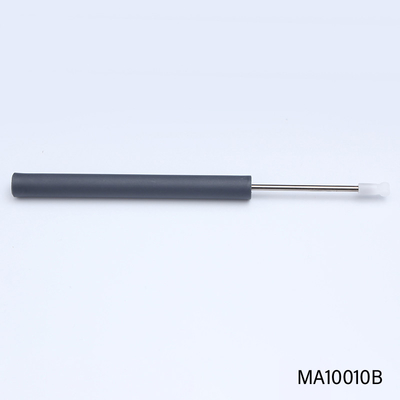

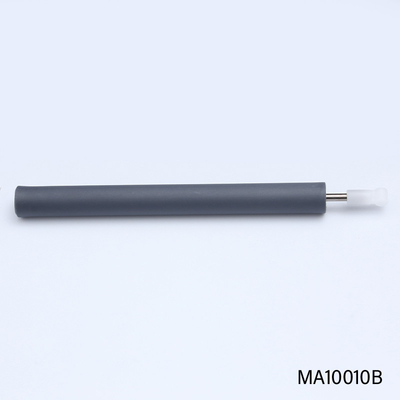

MA10010B Oil Damper Door Accessories Door Fitting Metal Damper
Plastic dampers can slow down heavy drawers or pullout shelves just in time before they close. The faster impact the damper bears, the larger reactive force there will be.
Benefits of Plastic Damper
· Service life up to 100,000 cycles with SGS certificated
· Usable within -20-60° C in the temperature range
· Customized extension velocity and compression resistance
· Environmentally friendly materials
· High impact resistance
· Enjoy a quieter leisure time by reducing the banging sounds in your life
| No. | Product model | Cylinder Length | Cylinder diameter | Rod diameter | Extend Stroke | Force(N) | Remarks |
| 1 | MA10910J | 109mm | 10mm | 2.5mm | 75mm | Customized | |
| 2 | MA10910JL | 109mm | 10mm | 2.5mm | 75mm | Customized | |
| 3 | MA10010J | 100mm | 10mm | 2.5mm | 59mm | Customized | |
| 4 | MA11710J | 117mm | 10mm | 2.5mm | 75mm | Customized | |
| 5 | MA15810J | 158mm | 10mm | 2.5mm | 110mm | Customized | |
| 6 | MA15009J | 150mm | 9mm | 2.5mm | 110mm | Customized | |
| 7 | MA08285J | 82mm | 8.5mm | 2.5mm | 52mm | Customized | |
| 8 | MA08285JL | 82mm | 8.5mm | 2.5mm | 52mm | Customized | |
| 9 | MA08210J | 82mm | 10mm | 2.5mm | 52mm | Customized | |
| 10 | MA08309N | 83mm | 9mm | 1.8mm | 55mm | Customized | |
| 11 | MA09295J | 92mm | 9.5mm | 2.3mm | 57.5mm | Customized | Self open damper |
| 12 | MAO361OJ | 36mm | 10mm | 2.0mm | 14mm | Customized | Self open damper |
| 13 | MA07810N | 78mm | 10.4mm | 1.8mm | 48mm | Customized | Used for refrigerate |
| 14 | MA07885N | 78mm | 8.5mm | 2mm | 50mm | Customized | |
| 15 | MA07010J | 70mm | 10mm | 2.5mm | 45mm | Customized | |
| 16 | MA95510N | 95.5mm | 10.4mm | 1.8mm | 50.5 | Customized | |
| 17 | MA10010N | 100mm | 10mm | 2.5mm | 69mm | Customized | |
| 18 | MA08275J | 82mm | 7.5mm | 1.5mm | 50mm | Customized | Used for refrigerate |
| 19 | MA15012J | 150mm | 12mm | 3mm | 110mm | Customized | |
| Noted: Raw material(J-POM,N-PPA),(L-Shaft as extral length) | |||||||
|
Damping medium
|
Oil
|
|
Material
|
POM
|
|
Operateion temperature
|
-20℃-60℃
|
|
Service life
|
50,000 times
|
|
Compression direction damping,active return
|
|
Our Service
1. Samples can be offered to test before placing orders.
2. Low MOQ. Small orders are accepted.
3. OEM & ODM. Customization service is offered, including logo, laser marking.
4. Outstanding R&D ability,including product development and mould development.
5. Great pre-sales and after sales service.
Q1. Can I have a sample for testing?
A: Yes, samples are in stock, we will return sample fee back to you once you make a bulk order from us.
Q2. What about the lead time?
A: Sample needs 1-3 days, mass production time needs around 15 days for order quantity more than 10000 pieces.
Q3. What is your MOQ?
A: Small order is acceptable. 1 pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Shipping time depend on the shipping way you choose.
Q5. Can I print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Customized design is available. OEM and ODM are offered.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
