Product Details:
|
| Application: | Kitchen, Bathroom, Home Office, Living Room, Bedroom | Type: | Other Furniture Hardware |
|---|---|---|---|
| Color: | Grey | Surface Treatment:: | QPQ |
| Gas Type: | Nitogen Gas | Gas Style: | Gas Cylinder |
| High Light: | Hydraulic Oil Damper,Plastic Oil Damper,grey anti slam door damper |
||

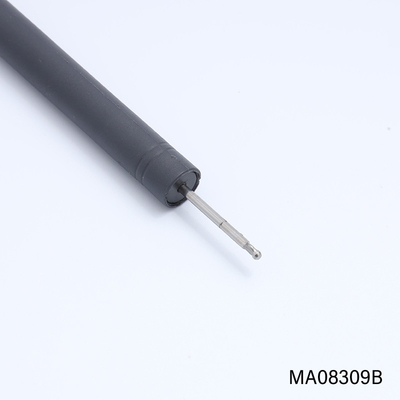

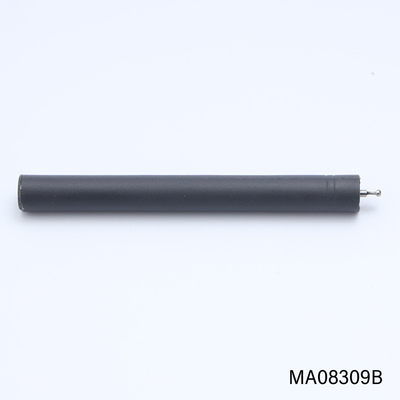

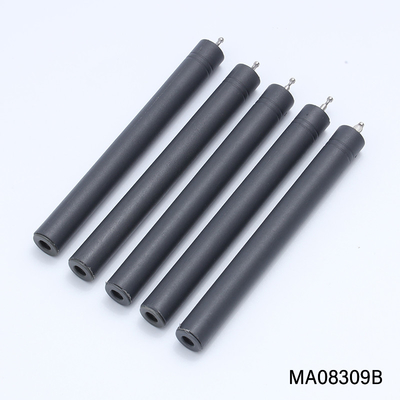

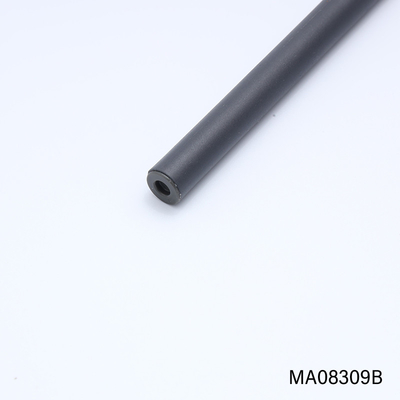

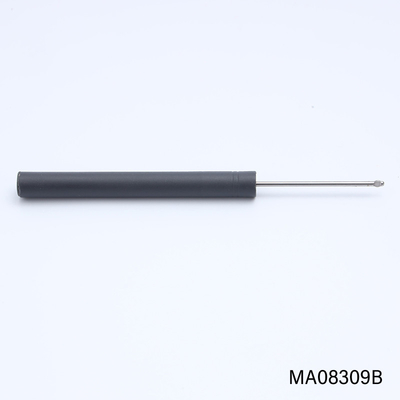

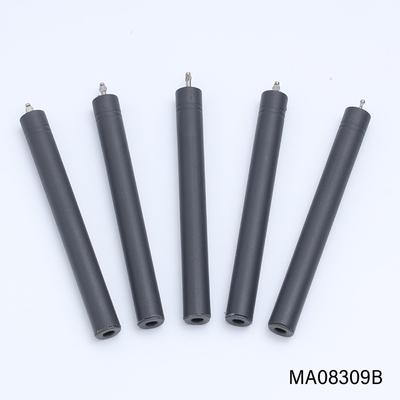

MA08285AL Furniture Hardware Fittings Sliding Door Damper
Our oil dampers are used in all situations where objects (flaps, covers or hatches, etc.) must not exceed a specified speed when moving. An constant damping throughout the entire stroke can be realized in correlation with the moved mass. The installation of our damper offers enormous advantages in many different areas of use, such as the furniture industry, vehicle construction or other industrial applications. TX calculates and develops dampers that are tailored to your requirements. In this way, we can provide the perfect solution whatever your application. With our installation recommendation we can you with the calculation of your damper. Our wide range of TX end fittings and TX mounting brackets can be connected to with the dampers.
| No. | Product model | Cylinder Length | Cylinderdiameter | Rod diameter | Extend Stroke | Force(N) | Remarks |
| 1 | MA10910J | 109mm | 10mm | 2.5mm | 75mm | Customized | |
| 2 | MA10910JL | 109mm | 10mm | 2.5mm | 75mm | Customized | |
| 3 | MA10010J | 100mm | 10mm | 2.5mm | 59mm | Customized | |
| 4 | MA11710J | 117mm | 10mm | 2.5mm | 75mm | Customized | |
| 5 | MA15810J | 158mm | 10mm | 2.5mm | 110mm | Customized | |
| 6 | MA15009J | 150mm | 9mm | 2.5mm | 110mm | Customized | |
| 7 | MA08285J | 82mm | 8.5mm | 2.5mm | 52mm | Customized | |
| 8 | MA08285JL | 82mm | 8.5mm | 2.5mm | 52mm | Customized | |
| 9 | MA08210J | 82mm | 10mm | 2.5mm | 52mm | Customized | |
| 10 | MA08309N | 83mm | 9mm | 1.8mm | 55mm | Customized | |
| 11 | MA09295J | 92mm | 9.5mm | 2.3mm | 57.5mm | Customized | Self open damper |
| 12 | MAO361OJ | 36mm | 10mm | 2.0mm | 14mm | Customized | Self open damper |
| 13 | MA07810N | 78mm | 10.4mm | 1.8mm | 48mm | Customized | Used for refrigerate |
| 14 | MA07885N | 78mm | 8.5mm | 2mm | 50mm | Customized | |
| 15 | MA07010J | 70mm | 10mm | 2.5mm | 45mm | Customized | |
| 16 | MA95510N | 95.5mm | 10.4mm | 1.8mm | 50.5 | Customized | |
| 17 | MA10010N | 100mm | 10mm | 2.5mm | 69mm | Customized | |
| 18 | MA08275J | 82mm | 7.5mm | 1.5mm | 50mm | Customized | Used for refrigerate |
| 19 | MA15012J | 150mm | 12mm | 3mm | 110mm | Customized | |
| Noted: Raw material(J-POM,N-PPA),(L-Shaft as extral length) | |||||||
|
Damping medium
|
Oil
|
|
Material
|
POM
|
|
Operateion temperature
|
-20℃-60℃
|
|
Service life
|
50,000 times
|
|
Compression direction damping,active return
|
|
Our Service
1. Samples can be offered to test before placing orders.
2. Low MOQ. Small orders are accepted.
3. OEM & ODM. Customization service is offered, including logo, laser marking.
4. Outstanding R&D ability,including product development and mould development.
5. Great pre-sales and after sales service.
Q1. Can I have a sample for testing?
A: Yes, samples are in stock, we will return sample fee back to you once you make a bulk order from us.
Q2. What about the lead time?
A: Sample needs 1-3 days, mass production time needs around 15 days for order quantity more than 10000 pieces.
Q3. What is your MOQ?
A: Small order is acceptable. 1 pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Shipping time depend on the shipping way you choose.
Q5. Can I print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Customized design is available. OEM and ODM are offered.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
