Product Details:
|
| Application: | Kitchen, Bathroom, Home Office, Living Room, Bedroom | Type: | Other Furniture Hardware |
|---|---|---|---|
| Color: | Grey | Surface Treatment:: | QPQ |
| Gas Type: | Nitogen Gas | Gas Style: | Gas Cylinder |
| High Light: | Furniture sliding door damper,Hardware sliding door damper,interior door damper 75mm |
||

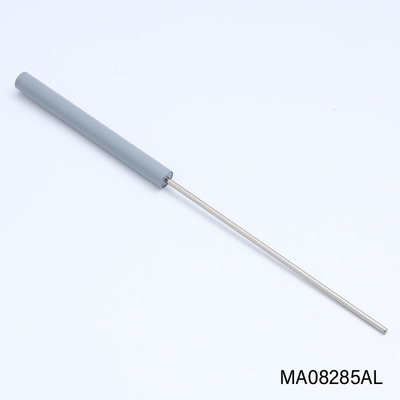

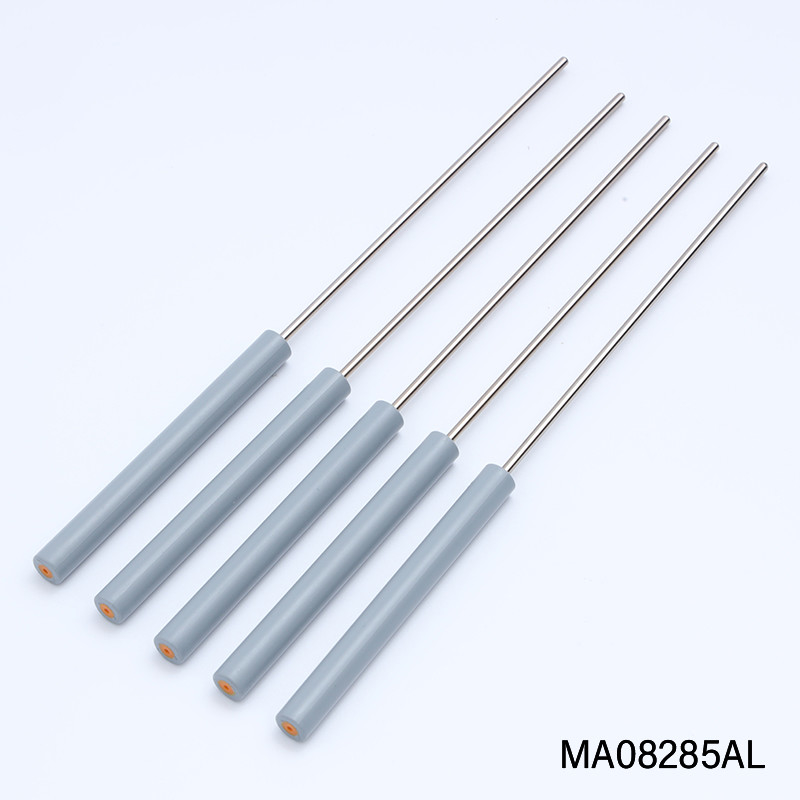

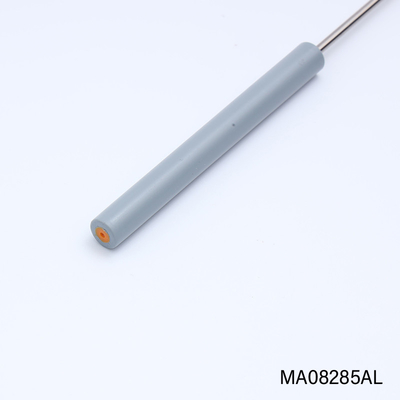

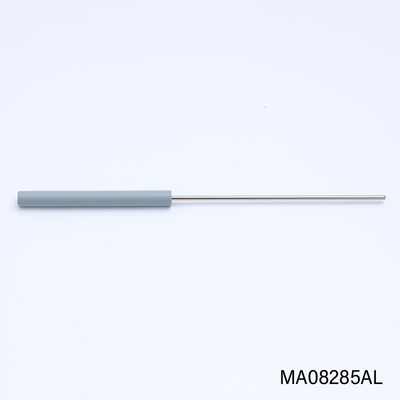

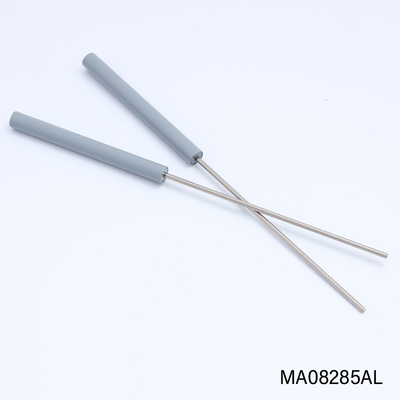

MA08285AL Furniture Hardware Fittings Sliding Door Damper
Upon compression of the rate control cylinder, the compression check ball seats. As the piston head moves, oil is forced through the orifice hole(s) located in the shock tube, producing the required damping force. After the oil has passed through the orifice hole(s), a portion of the oil passes through the extension check valve and fills the rod end of the shock tube. The remainder of the oil volume displaced by the piston rod compresses the foam accumulator.
Upon extension of the rate control cylinder, the extension check ball seats. As the piston head moves, oil is forced through the orifice hole(s) located in the shock tube producing the required damping force. The compression check ball is unseated by the flow of oil that fills the blind end of the shock tube.
| No. | Product model | Cylinder Length | Cylinderdiameter | Rod diameter | Extend Stroke | Force(N) | Remarks |
| 1 | MA10910J | 109mm | 10mm | 2.5mm | 75mm | Customized | |
| 2 | MA10910JL | 109mm | 10mm | 2.5mm | 75mm | Customized | |
| 3 | MA10010J | 100mm | 10mm | 2.5mm | 59mm | Customized | |
| 4 | MA11710J | 117mm | 10mm | 2.5mm | 75mm | Customized | |
| 5 | MA15810J | 158mm | 10mm | 2.5mm | 110mm | Customized | |
| 6 | MA15009J | 150mm | 9mm | 2.5mm | 110mm | Customized | |
| 7 | MA08285J | 82mm | 8.5mm | 2.5mm | 52mm | Customized | |
| 8 | MA08285JL | 82mm | 8.5mm | 2.5mm | 52mm | Customized | |
| 9 | MA08210J | 82mm | 10mm | 2.5mm | 52mm | Customized | |
| 10 | MA08309N | 83mm | 9mm | 1.8mm | 55mm | Customized | |
| 11 | MA09295J | 92mm | 9.5mm | 2.3mm | 57.5mm | Customized | Self open damper |
| 12 | MAO361OJ | 36mm | 10mm | 2.0mm | 14mm | Customized | Self open damper |
| 13 | MA07810N | 78mm | 10.4mm | 1.8mm | 48mm | Customized | Used for refrigerate |
| 14 | MA07885N | 78mm | 8.5mm | 2mm | 50mm | Customized | |
| 15 | MA07010J | 70mm | 10mm | 2.5mm | 45mm | Customized | |
| 16 | MA95510N | 95.5mm | 10.4mm | 1.8mm | 50.5 | Customized | |
| 17 | MA10010N | 100mm | 10mm | 2.5mm | 69mm | Customized | |
| 18 | MA08275J | 82mm | 7.5mm | 1.5mm | 50mm | Customized | Used for refrigerate |
| 19 | MA15012J | 150mm | 12mm | 3mm | 110mm | Customized | |
| Noted: Raw material(J-POM,N-PPA),(L-Shaft as extral length) | |||||||
|
Damping medium
|
Oil
|
|
Material
|
POM
|
|
Operateion temperature
|
-20℃-60℃
|
|
Service life
|
50,000 times
|
|
Compression direction damping,active return
|
|
Our Service
1. Samples can be offered to test before placing orders.
2. Low MOQ. Small orders are accepted.
3. OEM & ODM. Customization service is offered, including logo, laser marking.
4. Outstanding R&D ability,including product development and mould development.
5. Great pre-sales and after sales service.
Q1. Can I have a sample for testing?
A: Yes, samples are in stock, we will return sample fee back to you once you make a bulk order from us.
Q2. What about the lead time?
A: Sample needs 1-3 days, mass production time needs around 15 days for order quantity more than 10000 pieces.
Q3. What is your MOQ?
A: Small order is acceptable. 1 pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Shipping time depend on the shipping way you choose.
Q5. Can I print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Customized design is available. OEM and ODM are offered.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
