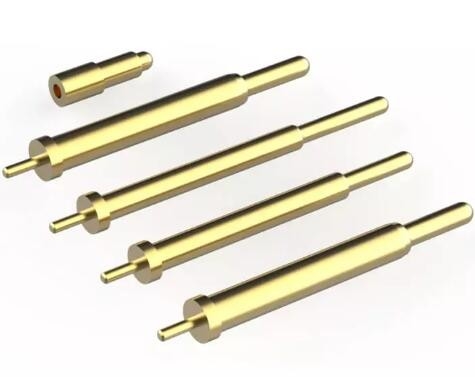

Professional Double Head Pogo Pin For Charging Equipment
A Double ended Pogo Pin works by connecting with the two contact points. The spring-loaded contacts allow for a temporary or permanent connection. When the Pogo Pin is inserted into a PCB, the contacts make contact with the copper pads on the board. This creates an electrical connection between the Pogo Pin and the PCB.
Because of their compact size and simple design, They are often used in electronic devices where space is limited, such as cell phones and laptops. In addition to their small size, Pogo Pins are also relatively inexpensive.
As a result, they have become a popular choice for a wide variety of applications, including electrical testing, battery charging, and data transfer. Pogo Pins are also commonly used in robotic systems, where they can be used to create electrical connections between different parts of the robot. Thanks to their versatility and low cost, Pogo Pins are likely to continue to be a popular choice for a variety of applications in the future.
| Item | Description |
| Design/Size | According to the customer's drawing or sample |
| Material |
Aluminum:Al6061, Al6063, AL6082, AL7075, AL5052, A380 etc. Stainless Steel:SS201, SS301, SS303, SS304, (SS304 FOOD GRADE), SS316,SS316L,SUS430, SS416 etc. Steel: Mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45# etc. Alloy steel (15Cr,20Cr,42CrMo) and other etc. Brass:HPb63, HPb62, HPb61, HPb59, H59, H68, H80, H90 etc. Copper,Bronze,Red copper,etc. Titanium: TC4 (TiAl6v4, Gradef5) Plastic:ABS, PC, PE, POM, Delrin, Nylon, plastic, PP,PEI, Peek etc. |
| Process | CNC machining, Turning, Milling, Stamping,Lathing, Cutting, etc. |
| Leadtime | 3-7 working days for samples generally, mass production as per detail qty after samples approval. |
| Surface Treatment | Clear Anodized, Color Anodized, Chemical Film, Brushing, Passivating, Passivating, Polishing, Chroming, Sandblasting, Laser engraving, Zinc plating, Oxide black, Nickel plating, Chrome plating, Carburized, Heat treatment, Carburized,Painting |
| Test Equipment | 2D Measurement instrument,Projector,Altimeter,Micrometer,Thread Gages,Hardness, Tester, Calipers,Pin Gauge,Salt Spray Test Machine etc. |
| QC system | 100% Inspection Before Shipment |
| Application | Auto parts,machinery parts,computer parts,medical parts,home appliances parts,electrical equipment parts,electrical appliances parts,electronic products parts,electronic parts,generator parts,alternator parts,dynamo parts,electric generator parts,stationery,power switches,miniature switches,architecture,commodity and A/V equipment. |
| File Format | Solidworks,pro/Engineer,CAD,PDF,JPG,DXF,IGS |
| Packing | Inner-Plastic bag,Outer -Standard Carton Box,or according to customers' requirements |
| Shipping | You can send the goods by sea, by air, International Express(DHL,FedEx,TNT,UPS)just decide by you. |
| Service | Warm and quick response service by the professional foreign trade team. |
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|---|---|---|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
