100000 Cycles Double Ended POGO Pin

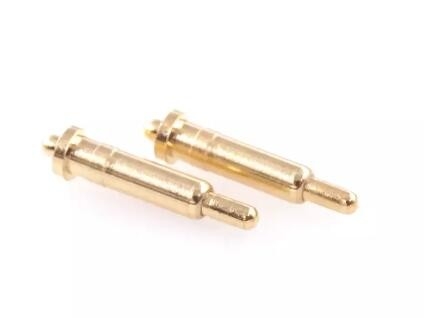

Large Image : 100000 Cycles Double Ended POGO Pin

Product Details:

Place of Origin:	China
Brand Name:	TX
Certification:	ICAS ROHS ULS GS REACH

Payment & Shipping Terms:

Minimum Order Quantity:	30K
Price:	Negotiation
Packaging Details:	Vacuum Reel/ PVC Bag
Delivery Time:	17-22 Days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000000Kpcs

Contact Now

100000 Cycles Double Ended POGO Pin

Description

Product Name:	Double Head Pin	Feature:	Pogo Pin
Material:	Brass 3604	Mechanical Life:	100,000 Cycles
Function:	PCB,power ,charging Equipment	Salt Spray:	48H
Application:	Power Charge Data Transmission	Plunger Plating:	Gold Plating Over Nickel Plating
Highlight:	100000 cycles Double Ended POGO Pin , Brass 3604 Double Ended POGO Pin , 1.03mm high current pogo pin connector

Customized Single Pin Double-Ended Spring Pin Pogo Pin Connector

We offer a range of surface mount vertical Pogo Pin spring loaded contacts. Pogo Pin connectors have multiple applications, including wearable medical and fitness devices, mobile phones, car stereos, and notebook and tablet computers. To complement and mate with the individual spring-loaded contacts, and also the SMT Spring Contacts, are a range of multi-purpose S70 Surface Mount flat contact pads, which can be used with the new Pogo Pin contacts as well as other spring contacts and spring loaded contact assemblies.

Rounded contact heads with a gold finish to maximise device life
Free height from 2.4mm to 8.2mm
Multi-contact connectors in 2, 3, 4 or 5 contact configurations
Individual pins in two barrel sizes; 1.03mm diameter or 1.50mm diameter

Item	Description
Design/Size	According to the customer's drawing or sample
Material	Aluminum:Al6061, Al6063, AL6082, AL7075, AL5052, A380 etc. Stainless Steel:SS201, SS301, SS303, SS304, (SS304 FOOD GRADE), SS316,SS316L,SUS430, SS416 etc. Steel: Mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45# etc. Alloy steel (15Cr,20Cr,42CrMo) and other etc. Brass:HPb63, HPb62, HPb61, HPb59, H59, H68, H80, H90 etc. Copper,Bronze,Red copper,etc. Titanium: TC4 (TiAl6v4, Gradef5) Plastic:ABS, PC, PE, POM, Delrin, Nylon, plastic, PP,PEI, Peek etc.
Process	CNC machining, Turning, Milling, Stamping,Lathing, Cutting, etc.
Leadtime	3-7 working days for samples generally, mass production as per detail qty after samples approval.
Surface Treatment	Clear Anodized, Color Anodized, Chemical Film, Brushing, Passivating, Passivating, Polishing, Chroming, Sandblasting, Laser engraving, Zinc plating, Oxide black, Nickel plating, Chrome plating, Carburized, Heat treatment, Carburized,Painting
Test Equipment	2D Measurement instrument,Projector,Altimeter,Micrometer,Thread Gages,Hardness, Tester, Calipers,Pin Gauge,Salt Spray Test Machine etc.
QC system	100% Inspection Before Shipment
Application	Auto parts,machinery parts,computer parts,medical parts,home appliances parts,electrical equipment parts,electrical appliances parts,electronic products parts,electronic parts,generator parts,alternator parts,dynamo parts,electric generator parts,stationery,power switches,miniature switches,architecture,commodity and A/V equipment.
File Format	Solidworks,pro/Engineer,CAD,PDF,JPG,DXF,IGS
Packing	Inner-Plastic bag,Outer -Standard Carton Box,or according to customers' requirements
Shipping	You can send the goods by sea, by air, International Express(DHL,FedEx,TNT,UPS)just decide by you.
Service	Warm and quick response service by the professional foreign trade team.

Structure	Ball beads structure	Sloping structure	Perforated structure	Claw structure
Contact impedance	≤ 10mΩ	≤ 30mΩ	≤ 50mΩ	≤ 5mΩ
Long service time	10000+	10000+	10000+	500+
Recommended working current	10A max	10A max	10A max	10A max
Main application areas	Mainly used for charging and condition with certain requirements for vibration and shock	Mainly used for charging or signal transmission of Consumer electronics	Mainly used for signal transmission or grounding antenna,etc.	Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles.
Remarks	The beads increase the internal contacts,the contact is more stable,and the more needle space is required	The most commonly used structure on the market	The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging	The needle and the needle tube have multiple contacts to increase the contact stability

How to place the order
* You send us drawing or sample

* We carry through project assessment

* We make the sample and send it to you

* You think the sample is good then place an order and pay us 30% deposit

* We start to make the product

* When the goods is done, we take photoes for your check and you then pay the balance

* We deliver the products to courier company
