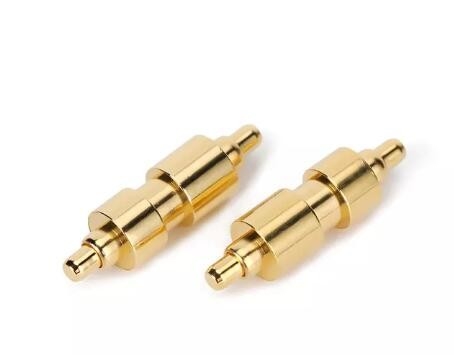

2.5mm 8.3mm Double Ended POGO Pin

Certification
China Suzhou Texun Precision Machinery Co., Ltd. certification
China Suzhou Texun Precision Machinery Co., Ltd. certification
I'm Online Chat Now

2.5mm 8.3mm Double Ended POGO Pin

2.5mm 8.3mm Double Ended POGO Pin
2.5mm 8.3mm Double Ended POGO Pin

Large Image :  2.5mm 8.3mm Double Ended POGO Pin

Product Details:
Place of Origin: China
Brand Name: TX
Certification: ICAS ROHS ULS GS REACH
Payment & Shipping Terms:
Minimum Order Quantity: 30K
Price: Negotiation
Packaging Details: Vacuum Reel/ PVC Bag
Delivery Time: 17-22 Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000000Kpcs

2.5mm 8.3mm Double Ended POGO Pin

Description
Product Name: Double Head Pin Feature: Pogo Pin
Material: Brass, Brass Tolerance: +-0.01mm
Function: PCB,power ,charging Equipment Salt Spray: 48H
Application: Power Charge Data Transmission Plunger Plating: Gold Plating Over Nickel Plating
Highlight:

2.5mm Double Ended POGO Pin 8.3mm

,

2.5mm 8.3mm Double Ended POGO Pin

,

alloy steel pin and socket contacts

Floating Double Head Pogo Pin Connector 12.5 Mm Height Dual Spring Loaded



- Ball strucutre to protect spring from high current.
- Thru-hole tail for secure soldering.
- Solder-cup tail for wire attachment. (Recommended AWG19 or greater)

- Available 2A per pin

- Working Height: 2.5mm ~ 8.3mm

- Spring Force: 0.9N or 1.08N

- Tube Bottom Diameter: 1.8mm ~ 2.5mm



Item Description
Design/Size According to the customer's drawing or sample
Material

Aluminum:Al6061, Al6063, AL6082, AL7075, AL5052, A380 etc.

Stainless Steel:SS201, SS301, SS303, SS304, (SS304 FOOD GRADE), SS316,SS316L,SUS430, SS416 etc.

Steel: Mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45# etc.

Alloy steel (15Cr,20Cr,42CrMo) and other etc.

Brass:HPb63, HPb62, HPb61, HPb59, H59, H68, H80, H90 etc.

Copper,Bronze,Red copper,etc.

Titanium: TC4 (TiAl6v4, Gradef5)

Plastic:ABS, PC, PE, POM, Delrin, Nylon, plastic, PP,PEI, Peek etc.

Process CNC machining, Turning, Milling, Stamping,Lathing, Cutting, etc.
Leadtime 3-7 working days for samples generally, mass production as per detail qty after samples approval.
Surface Treatment Clear Anodized, Color Anodized, Chemical Film, Brushing, Passivating, Passivating, Polishing, Chroming, Sandblasting, Laser engraving, Zinc plating, Oxide black, Nickel plating, Chrome plating, Carburized, Heat treatment, Carburized,Painting
Test Equipment 2D Measurement instrument,Projector,Altimeter,Micrometer,Thread Gages,Hardness, Tester, Calipers,Pin Gauge,Salt Spray Test Machine etc.
QC system 100% Inspection Before Shipment
Application Auto parts,machinery parts,computer parts,medical parts,home appliances parts,electrical equipment parts,electrical appliances parts,electronic products parts,electronic parts,generator parts,alternator parts,dynamo parts,electric generator parts,stationery,power switches,miniature switches,architecture,commodity and A/V equipment.
File Format Solidworks,pro/Engineer,CAD,PDF,JPG,DXF,IGS
Packing Inner-Plastic bag,Outer -Standard Carton Box,or according to customers' requirements
Shipping You can send the goods by sea, by air, International Express(DHL,FedEx,TNT,UPS)just decide by you.
Service Warm and quick response service by the professional foreign trade team.







Structure Ball beads structure Sloping structure Perforated structure Claw structure
Contact impedance ≤ 10mΩ ≤ 30mΩ ≤ 50mΩ ≤ 5mΩ
Long service time 10000+ 10000+ 10000+ 500+
Recommended working current 10A max 10A max 10A max 10A max
Main application areas Mainly used for charging and condition with certain requirements for vibration and shock Mainly used for charging or signal transmission of Consumer electronics Mainly used for signal transmission or grounding antenna,etc. Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles.
Remarks The beads increase the internal contacts,the contact is more stable,and the more needle space is required The most commonly used structure on the market The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging The needle and the needle tube have multiple contacts to increase the contact stability



How to place the order
* You send us drawing or sample

* We carry through project assessment

* We make the sample and send it to you

* You think the sample is good then place an order and pay us 30% deposit

* We start to make the product

* When the goods is done, we take photoes for your check and you then pay the balance

* We deliver the products to courier company

2.5mm 8.3mm Double Ended POGO Pin 02.5mm 8.3mm Double Ended POGO Pin 12.5mm 8.3mm Double Ended POGO Pin 22.5mm 8.3mm Double Ended POGO Pin 3
